CLT55R Large Capacity Low Speed Refrigerated
Max. RCF: 4904 xg
Max. capacity: 4x750ml

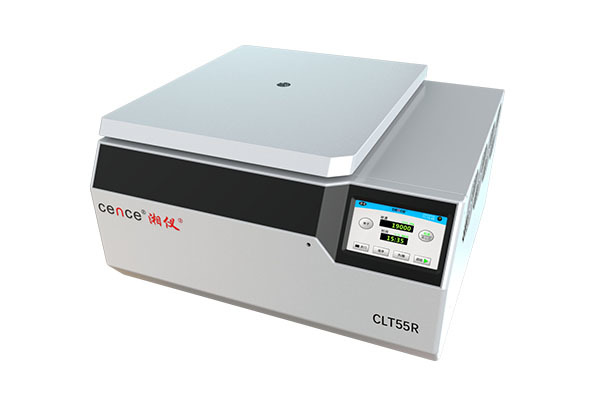

CLT55R/CLT55 Large Capacity Low Speed Refrigerated /Non-refrigerated Centrifuge
Centrifuge CLT55R/CLT55 can be matched with a variety of test tubes/bottles and micro plate, which greatly improves the universality of the experiment.
Various aerosol-tight bucket ensures centrifugal safety. The airflow guiding design maintains the centrifuge chamber temperature in low level for protection of temperature sensitive samples. The buckets and adapters can be autoclaved.
It is an ideal product for clinical medicine, molecular biology, cell culture and other industries.
Product Advantages
1. Equipped with 7-inch full touch screen( can be directly operated with gloves), simple interface and all parameters at a glance.
2. Touch interface for super-fast parameter setting compared with the traditional push-button operation.
3. RCF and Speed can be automatically switched for touch the key.
4. Two time setting ranges for optional: 1s-99min 59s and 1min to 99h59min.
5. Three Timing modes for optional: start timing, speed timing and continuous timing.
6. Each program can be divided into 5 steps, and different rpm and time setting for each step.
7. Save up to 100 user-defined programs.
8. 11 acceleration and 12 deceleration stages. And free parking time can be set.
9. According to the time interval of the experiment, the sleep time of the instrument can be set (the default value is 15 minutes), which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument.
10. CLT55R: Pre-cooling function available.
Pre-cooling parameters can be customized according to different rotors. And it can be scheduled in advance, so the experiment can be carried out once enter the laboratory to save time.
CLT55R refrigerated centrifuge adopts VF compressor with PID dynamic intelligent temperature control technology (patent No.: ZL201922274761.7) and dual channel refrigeration system (patent No.: ZL201922269242.1), for optimized cooling performance.
11. The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
12. AC frequency conversion motor is maintenance free and no carbon pollution with long service life and accurate speed accuracy (less than 10rpm)
13. Maxium capacity 4x750ml, which can be equipped with the aerosol-tight bucket to ensure the safety of centrifugation and no pollution.
14. 0.5ml-750ml adapters are available. This centrifuge is capable of offering superior capacity of up to 36x50ml conical tubes, 76x15ml conical tubes, 152x7ml vaccum blood collection tubes, which is an ideal choice for clinical examination and laboratory analysis.
Technical Parameters
Model |
CLT55R |
Order No. |
0204260029 |
Max. speed |
5500r/min |
Max. RCF |
4904 xg |
Max. capacity |
4x750ml |
Speed accuracy |
±10r/min |
Time setting range |
1 s to 99min59s or 1 min to 99h59min |
Temperature setting range |
-20℃ to 40℃ |
Temperature accuracy |
±0.5℃ |
Timing mode |
start timing after spinning, start timing after reach setting speed, short spinning |
Pre-cooling function |
yes |
Rotor identification |
yes |
Short spinning |
yes |
Noise |
≤65dB(A) |
Power supply |
AC220V±22V 50/60Hz |
Power consumption |
1.6kW |
Dimension (WxDxH) |
713x681x398mm |
Packing dimension (WxDxH) |
860x810x620mm |
Net weight |
95kg |
Rotor Options
Rotor No. |
Rotor type |
Max. speed (r/min) |
Max. RCF(xg) |
Capacity |

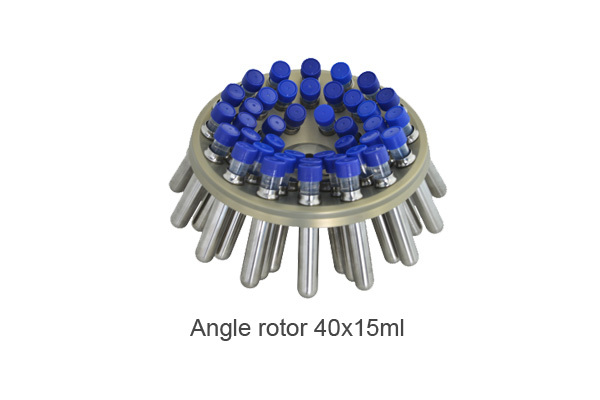

No.1 |
Angle rotor |
5500 |
4904 |
40x15ml |
No.2 |
Swing rotor yoke |
4000 |
3345 |
4x500ml |
Round bucket/ aerosol-tight round bucket |
4000 |
3345 |
4x1x250ml |
|
4x2x100ml |
||||
4x4x50ml (conical/round) |
||||
4x7x20ml |
||||
4x9x15ml (conical/round) |
||||
4x11x15ml(conical) tube cap≤21.5mm |
||||
4x14x10ml |
||||
4x19x5/7ml vacuum blood collection tube |
||||
4x36x1.5ml |
||||
Rectangular bucket/ aerosol-tight rectangular bucket |
4000 |
3345 |
4x1x250ml |
|
4x3x100ml |
||||
4x6x50ml (conical/round) |
||||
4x12x15ml(conical) |
||||
4x12x15ml(round) |
||||
4x20x10ml |
||||
4x31x5/7ml vacuum blood collection tube |
||||
4x56x1.5ml |
||||

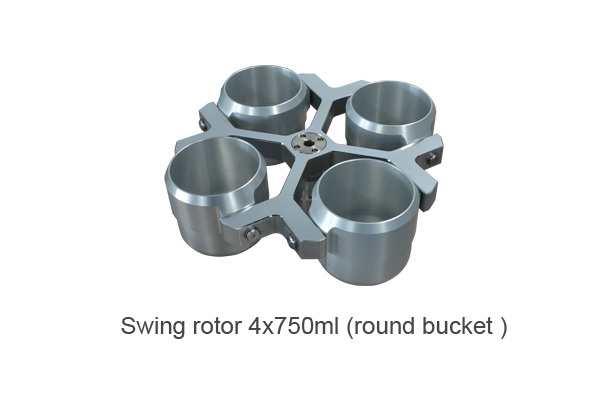

No.3 |
Swing rotor yoke |
4000 |
3500 |
4x750ml |
Round bucket/ Aerosol-tight round bucket |
4000 |
3500 |
4x1x500ml (conical) |
|
4x1x500ml (flat) |
||||
4x1x250ml (conical) |
||||
4x1x250ml (flat) |
||||
4x4x100ml |
||||
4x5x50ml (self-standing tube) |
||||
4x7x50ml (conical/round) |
||||
4x10x20ml |
||||
4x15x15ml (conical) |
||||
4x19x10ml (self-standing tube) |
||||
4x21x10ml |
||||
4x27x5/7ml vacuum blood collection tube |
||||
4x37x5ml (RIA tube) |
||||
4x56x1.5ml |
||||
Rectangular bucket |
4000 |
3500 |
4x750ml (rectangular) |
|
4000 |
3500 |
4x9x50ml |
||
4x9x50ml (conical) |
||||
4x38x5/7ml vacuum blood collection tube |
||||
4x19x15ml (conical) |
||||
4x19x15ml |
||||
4x30x10ml |
||||
Microplate bucket |
4000 |
3500 |
4x4x96 MTP 4x2x96 DWP total height<67mm |
|

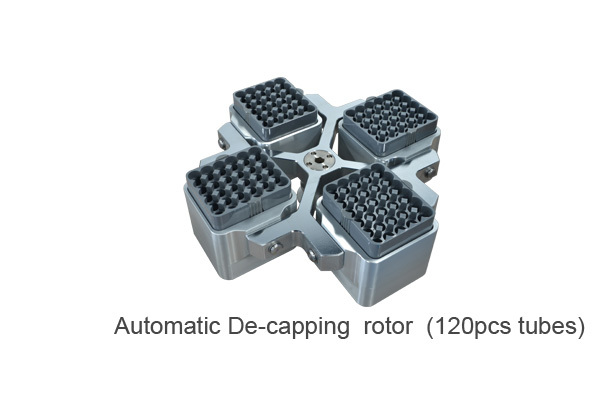

No.4 |
Swing rotor yoke |
4000 |
3370 |
auto decapping |
Bucket |
4000 |
3370 |
4x30x5/7ml(ɸ13 x75/100mm) |
|
Adaptor |
4000 |
3370 |
vacuum blood collection tube |
