H2500R-2 Large Capacity High Speed Refrigerated Centrifuge
angle rotor 25000r/min
swing rotor 4000r/min
Max. RCF:
angle rotor 64800xg
swing rotor 3500xg
Max. capacity:
angle rotor 4x1000ml
swing rotor 4x750ml
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Product Description

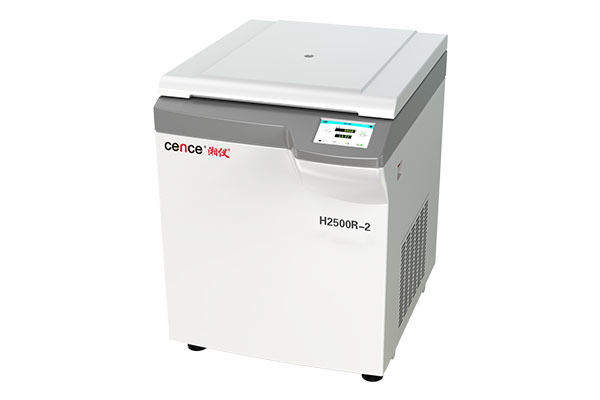

H2500R-2 Large Capacity High Speed Refrigerated Centrifuge
H2500R-2 high speed refrigerated centrifuge ingrates many high-technologies of Cence and new design elements.
Enhanced ergonomics design and easy to operate. The breakthrough of high-speed operation technology makes the max speed up to 25000r/min with RCF at 64800xg.
It is widely used in academic research, scientific research and bioengineering etc.
Product Advantages
1. Maxium speed is up to 25000r/min, maxium RCF is up to 64800xg (with No.1 rotor).
2. Choose from 13 optional rotors to find the ideal fit for your application.
3. Automatic rotor identification, automatic over-speed protection for added safety.
4. 7-inch touchscreen interface with bright, highly visible, and durable display simplifies run set-up.
The setting parameters and running parameters can be displayed simultaneously on the screen.
5. Automatic storage of main machine and rotor operating parameters, automatic calculation of rotor service life, and alarm.
6. Directly driven by a high-torque variable frequency motor, with large starting torque and short acceleration time.
7. Equipped with multiple protection against imbalance, over-temperature, over-speed, to ensure user’s safety as well as instrument.
8. Data records
Data traceability management, running history records, diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device, which can ensure the data integrity.
9. Super powerful control system, offering step centrifugation, scheduled start, sample ID, curve mode, program mode, multi-language selection and other functions.
10. All aluminum alloy rotors are forged with 7075-T6 aviation grade aluminum alloy, the surface is hard oxidation, with thick oxide layer and strong corrosion resistance.
Technical Parameters
|
Model |
H2500R-2 |
|
Order No. |
0202124000 |
|
Max. speed |
angle rotor 25000r/min |
|
swing rotor 4000r/min |
|
|
Max. RCF |
angle rotor 64800xg |
|
swing rotor 3500xg |
|
|
Max. capacity |
angle rotor 4x1000ml |
|
swing rotor 4x750ml |
|
|
Speed accuracy |
±10r/min |
|
Time setting range |
1min to 99h 59min |
|
Timing mode |
start timing after spinning, start timing after reach setting speed, short spinning or continuous timing, operation at an appointed time |
|
Temperature setting range |
-20℃ to 40℃ (step 1℃ adjustable) |
|
Pre-cooling function |
yes |
|
Temperature accuracy |
±1℃ |
|
Steps centrifugation |
Yes |
|
Compressor unit |
high performance compressor unit, environment-friendly refrigerant（R404a） |
|
Drive system |
high torque brushless motor |
|
Power supply |
AC220V±22V, 50Hz |
|
Power consumption |
5kW |
|
Noise |
≤65dB(A) |
|
Dimension (WxDxH) |
730x930x960mm |
|
Packing dimension (WxDxH) |
880x1120x1180mm |
|
Weight |
260kg |
Rotor Options
|
Rotor No. |
Rotor type |
Max. speed（r/min） |
Max. RCF(xg) |
Capacity |
|
No.1 |
Angle rotor |
25000 |
64800 |
24x1.5/2ml |
|
Adaptor |
25000 |
64800 |
0.2ml/0.5ml |
|
|
No.2 |
Angle rotor |
23000 |
60460 |
18x10ml |
|
Adaptor |
23000 |
60460 |
1.5ml/5ml/7ml |
|
|

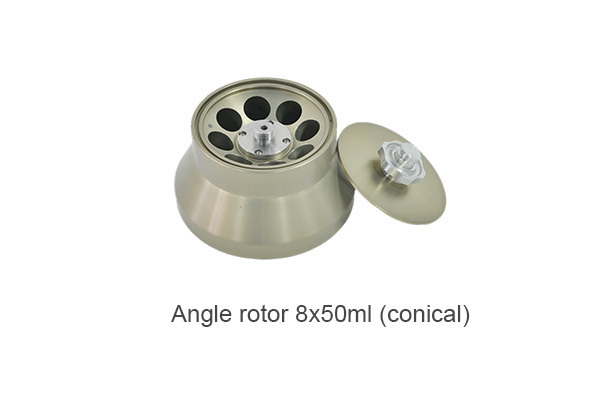

No.3 |
Angle rotor (titanium alloy) |
21000 |
52356 |
8x50ml |
|
Adaptor |
21000 |
52356 |
1.5ml/5ml/10ml/15ml 20ml/25ml/30ml |
|
|
Angle rotor |
21000 |
52356 |
8x50ml |
|
|
Adaptor |
21000 |
52356 |
1.5ml/5ml/10ml/15ml 20ml/25ml/30ml |
|
|

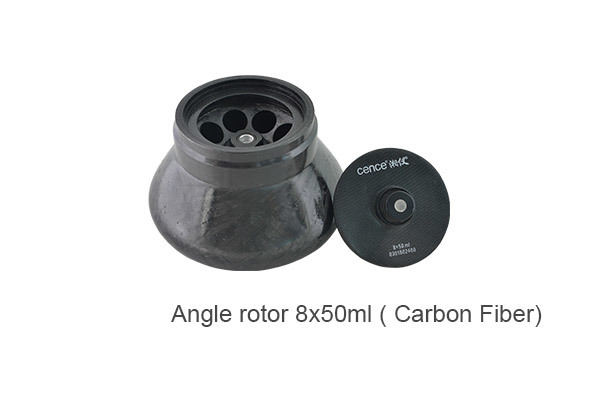

Angle rotor (carbon fiber) |
21000 |
52356 |
8x50ml |
|
|
Adaptor |
21000 |
52356 |
1.5ml/5ml/10ml/15ml 20ml/25ml/30ml |
|
|
No.4 |
Angle rotor |
15000 |
33800 |
4x250ml |
|
Adaptor |
15000 |
33800 |
1.5ml/10ml/15ml(conical)/ 50ml(conical/round)/100ml |
|
|
No.5 |
Angle rotor (carbon fiber) |
14000 |
30070 |
6x250ml |
|
Adaptor |
14000 |
30070 |
1.5ml/10ml/15ml(conical)/ 50ml(conical/round)/100ml |
|
|
Angle rotor |
14000 |
30070 |
6x250ml |
|
|
Adaptor |
14000 |
30070 |
1.5ml/10ml/15ml(conical)/ 50ml(conical/round)/100ml |
|
|
No.6 |
Angle rotor |
10000 |
17700 |
6x500ml |
|
Adaptor |
10000 |
17700 |
1.5ml/5ml/10ml/ 15ml(conical)/30ml/ 50ml(conical/round)/ 100ml/250ml |
|
|
Angle rotor (carbon fiber) |
10000 |
17700 |
6x500ml |
|
|
Adaptor |
10000 |
17700 |
1.5ml/5ml/10ml/ 15ml(conical)/30ml/ 50ml(conical/round)/ 100ml/250ml |
|
|
No.7 |
Angle rotor |
8000 |
12040 |
4x1000ml |
|
Adaptor |
8000 |
12040 |
50ml(conical/round)/250ml/500ml |
|
|
No.8 |
Angle rotor |
22000 |
54706 |
30x1.5ml |
|
Adaptor |
22000 |
54706 |
0.2ml/0.5ml |
|
|

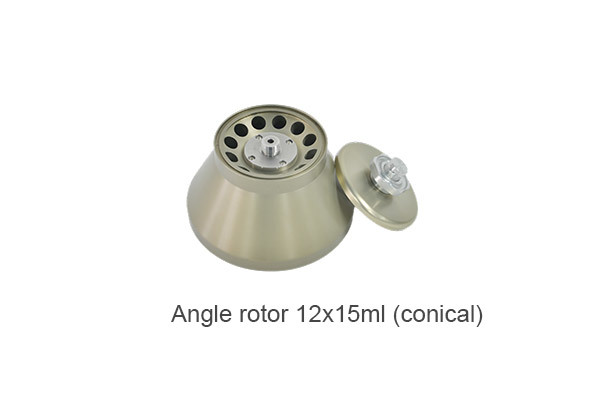

No.9 |
Angle rotor |
18000 |
36220 |
12x15ml(conical) |
|
Adaptor |
18000 |
36220 |
5ml |
|
|
No.10 |
Swing rotor |
10000 |
15680 |
6x50ml(with windshield) |
|

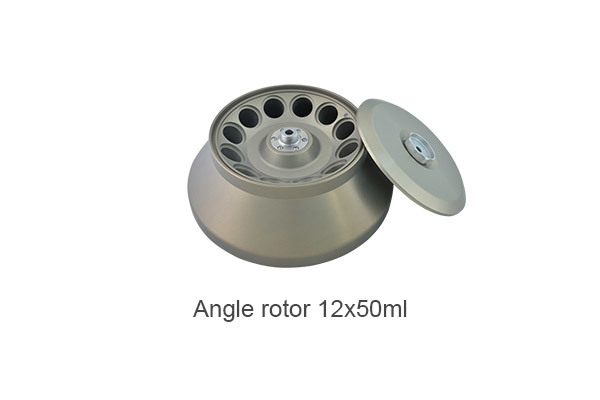

No.11 |
Angle rotor |
14000 |
30070 |
12x50ml(conical) |
|
Adaptor |
14000 |
30070 |
15ml(conical) |
|
|

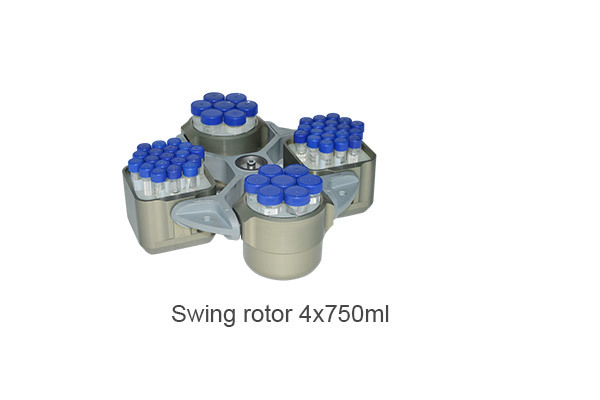

No.12 |
Swing rotor yoke |
4000 |
3500 |
4x750ml |
|
Round bucket/ aerosol-tight round bucket |
4000 |
3500 |
4x1x500ml(conical) |
|
|
4x1x500ml(flat) |
||||
|
4x1x250ml(conical) |
||||
|
4x1x250ml(flat) |
||||
|
4x4x100ml |
||||
|
4x5x50ml (self-standing tube) |
||||
|
4x7x50ml(conical) |
||||
|
4x7x50ml |
||||
|
4x10x20ml |
||||
|
4x15x15ml(conical) |
||||
|
4x19x10ml (self-standing tube) |
||||
|
4x21x10ml |
||||
|
4x27x5/7ml vacuum blood collection tube |
||||
|
4x37x5ml(RIA tube) |
||||
|
4x56x1.5ml |
||||
|
No.13 |
Swing rotor yoke |
4000 |
3345 |
4x500ml |
|
Round bucket/ aerosol-tight round bucket |
4000 |
3345 |
4x1x250ml |
|
|
4x2x100ml |
||||
|
4x4x50ml(conical/round) |
||||
|
4x7x20ml |
||||
|
4x9x15ml(conical/round) |
||||
|
4x11x15ml(conical) Tube cap≤21.5mm |
||||
|
4x14x10ml |
||||
|
4x19x5/7ml vacuum blood collection tube |
||||
|
4x36x1.5ml |
||||
|
Rectangular bucket/aerosol-tight rectangular bucket |
4000 |
3345 |
4x1x250ml |
|
|
4x3x100ml |
||||
|
4x6x50ml(conical/round) |
||||
|
4x12x15ml(conical) |
||||
|
4x12x15ml(round) |
||||
|
4x20x10ml |
||||
|
4x31x5/7ml vacuum blood collection tube |
||||
|
4x56x1.5ml |
||||
|
Microplate bucket |
4000 |
3345 |
4x2x96 MTP 4x1x96 DWP Only for plastic microplate |
