VORTEX 22K Large Capacity High Speed Refrigerated Centrifuge
angle rotor 22000r/min
swing rotor 4000r/min
Max. RCF:
angle rotor 52020xg
swing rotor 3500xg
Max. capacity:
angle rotor 6x500ml
swing rotor 4x750ml
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Product Description

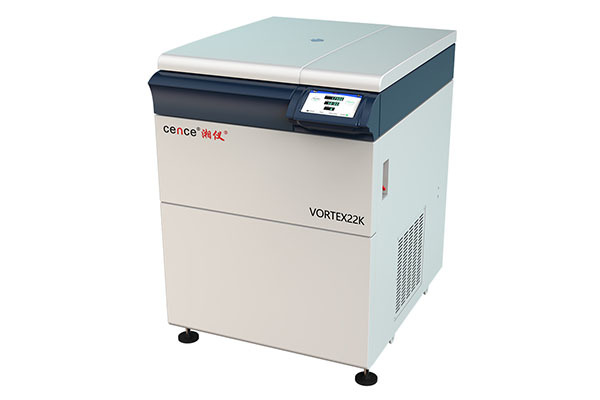

VORTEX 22K Large Capacity High Speed Refrigerated Centrifuge
Centrifuge VORTEX 22K is an intelligent centrifuge developed by Cence.
1 to 100 sets of this centrifuges can be monitored through intelligent terminal (like computer). User can monitor the operation status of centrifuges, save relevant records of centrifuge operation, establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge.
It meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments. And it comes with standard network interface, user can control the centrifuge by Mobile APP.
Product Advantages
1. Automatic door opening & closing by just touch the key on the screen.
Door lid come with intelligent anti pinch device.
2. Max speed up to 22000r/min, Max RCF up to 52020xg.
Angle rotor 6x500ml can efficiently separate biological products.
Swing rotor sample processing capacity is up to 4x750ml, which greatly improves the production efficiency and separation effect.
3. Featured with multiple protection , such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
4. Save up to 100 user-defined program. Users can name each program to distinguish it.
Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.
5. The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy ,hard oxidation, corrosion resistance.
From raw material to finished products, each process is strictly controlled.
The flaw detection report , tensile test report , chemical composition test report and processing test report can be provided.
6. The centrifuge chamber is made of 316L stainless steel and 2mm thick ( material certificate can be provided).
7. Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
8. In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key.
9. Powerful control system allows easy data capture, storage, and processing
Technical Parameters
|
Model |
VORTEX 22K |
|
Order No. |
0202253003 |
|
Max. speed |
angle rotor 22000r/min |
|
swing rotor 4000r/min |
|
|
Max. RCF |
angle rotor 52020xg |
|
swing rotor 3500xg |
|
|
Max. capacity |
angle rotor 6x500ml |
|
swing rotor 4x750ml |
|
|
Speed accuracy |
±10r/min |
|
Time setting range |
two modes optional: 1min to 99h59min and 1s to 99min59s, default mode: 1s to 99min59s |
|
Temperature setting range |
-20℃ to 40℃, step 1℃ adjustable |
|
Temperature accuracy |
±2℃ |
|
Pre-cooling function |
yes |
|
Rotor identification |
yes |
|
Imbalance protection |
yes |
|
Automatic door locking system |
yes (optional) |
|
Computer control |
RS485 or RS232 |
|
Protection function |
imbalance protection, rotor identification, door lid anti pinch protection, motor overheating protection, over-speed protection and over-temperature protection |
|
Noise |
≤65dB(A) |
|
Power supply |
AC220V±22V 50Hz |
|
Power consumption |
5kW |
|
Dimension (WxDxH) |
700x935x940(mm) |
|
Packing dimension (WxDxH) |
920x1040x1200(mm) |
|
Net weight |
342kg |
Rotor Options
|
Rotor No. |
Rotor type |
Max. speed (r/min) |
Max. RCF(xg) |
Capacity |
|
No.1 |
Angle rotor |
22000 |
52020 |
16x10ml |
|
Adaptor |
1.5ml/5ml/7ml |
|||
|

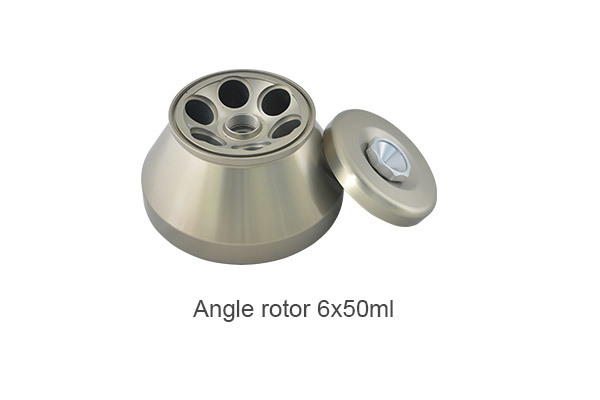

No.2 |
Angle rotor |
20000 |
43000 |
6x50ml |
|
Adaptor |
1.5ml/5ml/10ml/15ml/ 20ml/25ml/30ml |
|||
|
Angle rotor |
20000 |
43000 |
6x50ml (conical) 50ml round bottom adaptor as gift |
|
|
Adaptor |
15ml (conical) |
|||
|

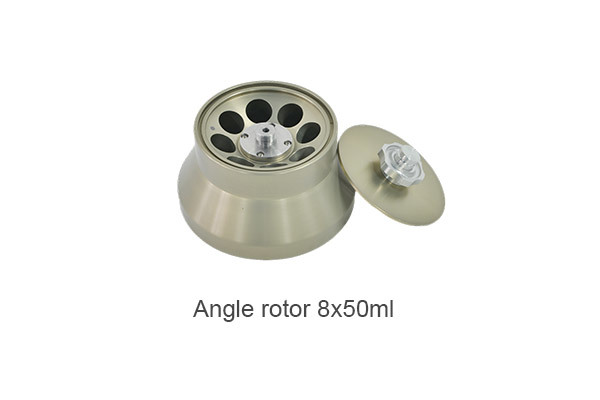

No.3 |
Angle rotor |
18000 |
37600 |
8x50ml |
|
Adaptor |
1.5ml/5ml/10ml/15ml/ 20ml/25ml/30ml |
|||
|

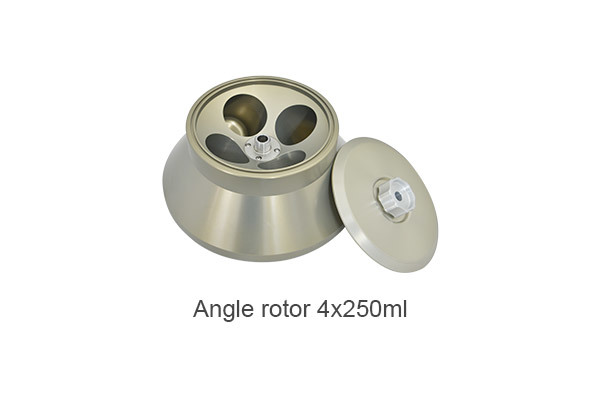

No.4 |
Angle rotor |
14000 |
29440 |
4x250ml |
|
Adaptor |
1.5ml/10ml/15ml(conical)/ 50ml(conical/round)/100ml |
|||
|
No.5 |
Angle rotor |
12000 |
22470 |
6x250ml |
|
Adaptor |
1.5ml/10ml/15ml(conical)/ 50ml(conical/round)/100ml |
|||
|
No.6 |
Angle rotor |
10000 |
17700 |
6x500ml |
|
Adaptor |
1.5ml/5ml/10ml/ 15ml(conical)/30ml/ 50ml(conical/round)/ 100ml/250ml |
|||
|
No.7 |
Continuous rotor |
14000 |
21500 |
1000ml |
|
No.8 |
Continuous rotor |
8000 |
9500 |
3000ml |
|

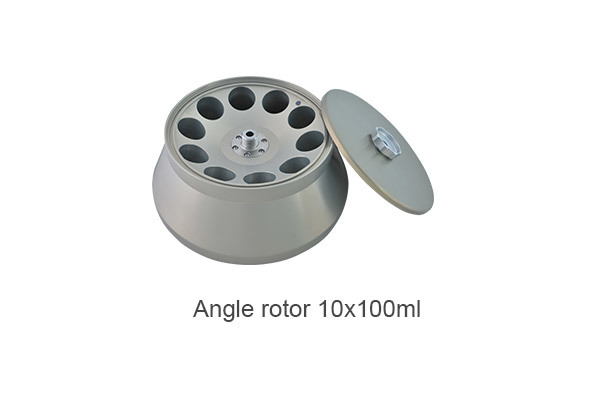

No.9 |
Angle rotor |
12000 |
21280 |
10x100ml |
|
Adaptor |
5ml/10ml/ 15ml(conical/round)/25ml/ 50ml (conical/round) |
|||
|
No.10 |
Angle rotor |
16000 |
28618 |
12x15ml (conical/round) |
|
Adaptor |
5ml |
|||
|
No.11 |
Angle rotor |
12000 |
22470 |
12x50ml (conical) |
|
Adaptor |
15ml (conical) |
|||
|
No.12 |
Swing rotor yoke |
4000 |
3345 |
4x500ml |
|
Round bucket/ aerosol-tight round bucket |
4000 |
3345 |
4x1x250ml |
|
|
4x2x100ml |
||||
|
4x4x50ml(conical/round) |
||||
|
4x7x20ml |
||||
|
4x9x15ml(conical/round) |
||||
|
4x11x15ml(conical) Tube cap≤21.5mm |
||||
|
4x14x10ml |
||||
|
4x19x5/7ml vacuum blood collection tube |
||||
|
4x36x1.5ml |
||||
|
Rectangular bucket/ aerosol-tight rectangular bucket |
4000 |
3345 |
4x1x250ml |
|
|
4x3x100ml |
||||
|
4x6x50ml(conical/round) |
||||
|
4x12x15ml(conical) |
||||
|
4x12x15ml(round) |
||||
|
4x20x10ml |
||||
|
4x31x5/7ml vacuum blood collection tube |
||||
|
4x56x1.5ml |
||||
|
Microplate bucket |
4000 |
3345 |
4x1x96 DWP 4x2x96 MTP (Only for plastic microplate) |
|
|
No.13 |
Swing rotor yoke |
4000 |
3500 |
4x750ml |
|
Round bucket/ Aerosol-tight round bucket |
4000 |
3500 |
4x1x500ml (conical) |
|
|
4x1x500ml (flat) |
||||
|
4x1x250ml (conical) |
||||
|
4x1x250ml (flat) |
||||
|
4x4x100ml |
||||
|
4x5x50ml (self-standing tube) |
||||
|
4x7x50ml (conical) |
||||
|
4x7x50ml |
||||
|
4x10x20ml |
||||
|
4x15x15ml (conical) |
||||
|
4x19x10ml (self-standing tube) |
||||
|
4x21x10ml |
||||
|
4x27x5/7ml Vacuum blood collection tube |
||||
|
4x37x5ml (RIA tube) |
||||
|
4x56x1.5ml |
||||
| No. 14 |
Continuous rotor (titanium alloy) |
10000 | 14800 | 3000ml |
| No. 15 | Continuous rotor (titanium alloy) | 16000 | 28100 | 1000ml |
