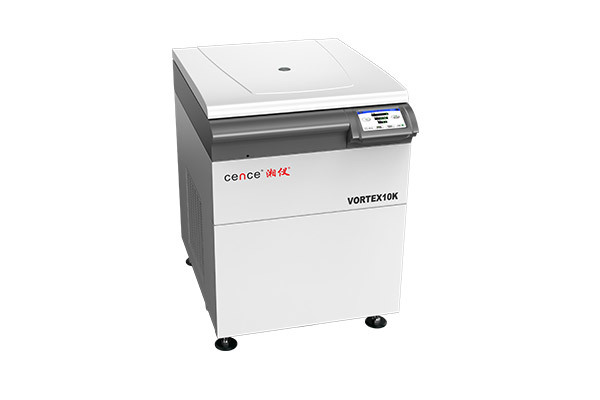

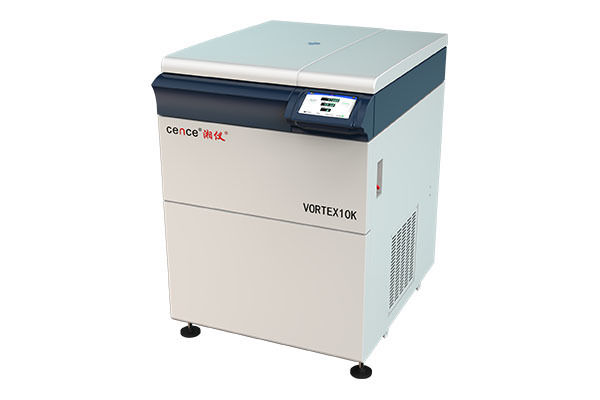

Cence VORTEX 10K Large Capacity High Speed Refrigerated Centrifuge

High speed Refrigerated Centrifuge VORTEX 10K is an intelligent centrifuge developed by Cence.

1 to 100 sets of working VORTEX 10K centrifuges can be monitored at the same time by intelligent terminal (computer). User can monitor the operation status of centrifuges, save relevant records of centrifuge operation, establish a safe connection with the centrifuge and remotely control the startup and stopping  of the centrifuge.

This floor standing centrifuge meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments. It comes with standard network interface. User can also  control the centrifuge by Mobile APP. Thus it is an ideal pharmaceutical centrifuge.

Product Advantages

1. Automatic Door Locking System

    Automatic door opening & closing by just touch the key on the screen.

    Door lid come with intelligent anti pinch device.

2. Large Capacity, High Speed

    Its maxium sample processing capacity is up to 6x1000ml, maxium speed up to 10000r/min, maxium RCF up to 17700xg, which greatly improves the production efficiency and separation effect.

3. Built-in Safety

    Featuring multiple protection, such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating  protection, door lid protection and so on.

4. Reliable Material

    The alloy aluminum rotor adopt 7075-T6 aviation grade alloy aluminum, hard oxidation, corrosion resistance.

    From raw material to finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided.

    Centrifuge chamber adopts 2mm thick 316L stainless steel, housing (3mm Q235 steel ), containment (15mm Q235 steel), diaphragm in door lid (3mm Q235 steel).

5. Extensible

    The system adopts unified and standard ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.

6. Programmable

   It can save up to 100 user-defined programs. User can name each program for distinguishing. Each program can be divided into 5 steps (set speed, time, temperature),  to meet the diversified experimental needs.

7. ACC/DEC Rates

  11 acceleration and 12 deceleration rate (No.10 rate can be self-defined), to prevent second emulsion or turbid, to achieve best centrifugation result.

8. Main Interface Function

   In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key.

9. Powerful System Setting Function

   Powerful control system allows easy data capture, storage, and processing.

10. Centrifuge Management System( Optional)

    Multiple sets of this centrifuges(usually less than 100) can be monitored by intelligent terminal (computer).

    It can provide real-time connection with mobile APP.

    There is built in help information in each interface.

    All these features make the centrifuge intelligent.

Technical Parameters

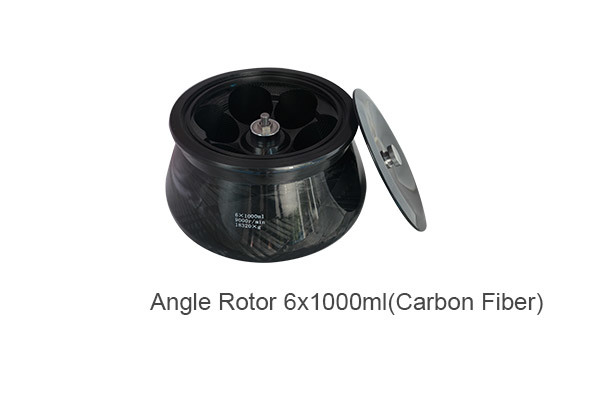

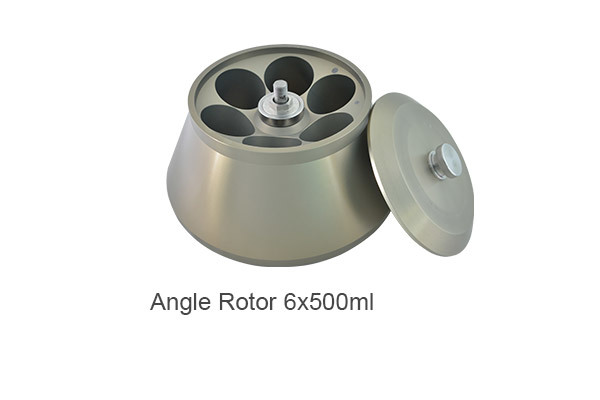

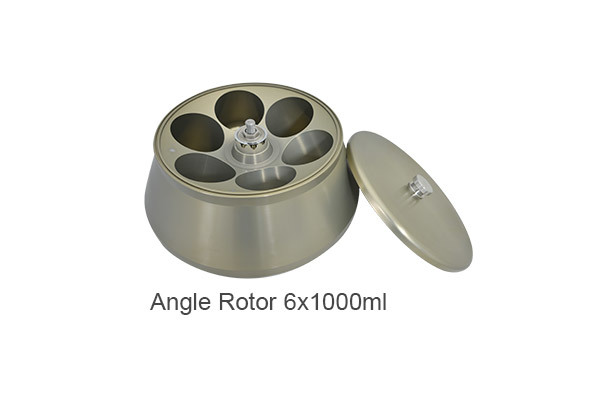

Rotor Options
