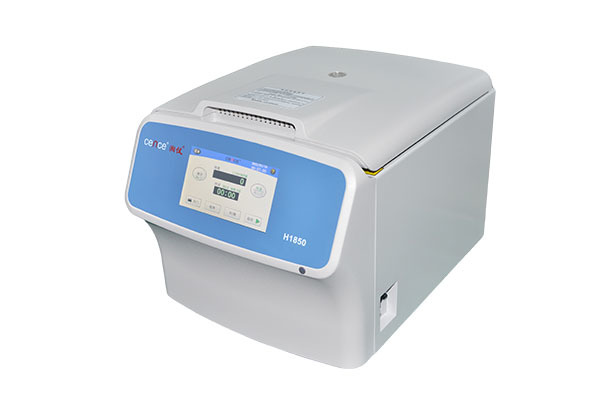

H1850 Benchtop High Speed Centrifuge

Max. speed: 18500r/min
Max. RCF: 23797xg
Max. capacity: 4x100ml

Other Products

Leave a message

H1850 Benchtop High Speed Centrifuge

15 rotors and many kinds of adapters are available for H1850. 6x50ml ( round/conical) are widely used among them. It has high speed rotor (18500rpm) and high capacity rotor (4x100ml).

The special wind defector can keep the sample in good state, and the daming system can reduce noise, ensure stable operation.

Product advantages

◆Equipped with 7-inch full touch screen simple interface and all parameters at a glance. Stepless speed adjustment, automatic

conversion of centrifugal force, display on the same screen.

◆Microprocessor control, AC inverter brushless motor, maintenance free.

◆50 program memories .users can simply name each programs, which is more convenient to call programs when using.

◆"Hold" button for continuous running, "Pulse" button for short spinning.

◆Automatic identification system for 15 magnetic rotors. It has 12x1.5/2ml angle rotor ( Max speed: 18500rpm), as well as

4x100ml swing rotor ( different adapters available).

◆10 individual acceleration and 11 deceleration stages, and free parking time can be set.

◆Stainless steel chamber with sealing ring, anti-failure protection system , such as door interlock malfunction, over-speed

operation, motor overheating, misoperation and communication fault etc. to ensure user’s safety.

Technical Parameters

Model	H1850
Order No.	0203270008
Max. speed	18500r/min
Max. RCF	23797xg
Max. capacity	4x100ml
Speed accuracy	±10r/min
Time setting range	1s to 99min59s/1min to 99min59sec, continuous work
Noise	≤65dB(A)
Power supply	220 V ± 10 %, 50/60 Hz
Power consumption	700W
Dimension (WxDxH)	380x505x360mm
Packing dimension (WxDxH)	480x780x460mm
Net weight	36kg

Rotor Options

Rotor No.	Rotor type	Max. speed (r/min)	Max. RCF(xg)	Capacity

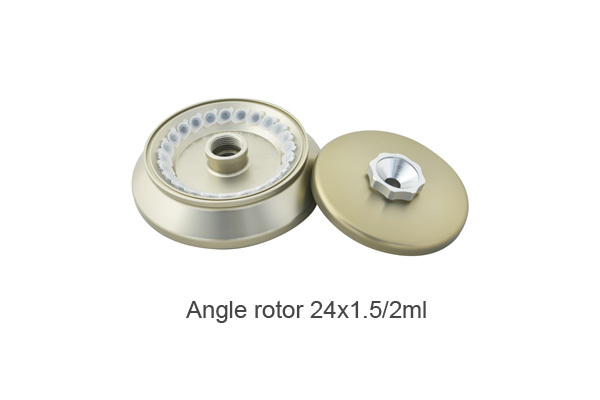

No.1	Angle rotor	15000	21532	24x1.5/2.0ml
No.2	Angle rotor	6500	6008	24x15ml
No.3	Angle rotor	13000	17370	12x10ml
No.3	Adaptor	13000	17370	1.5ml/5ml

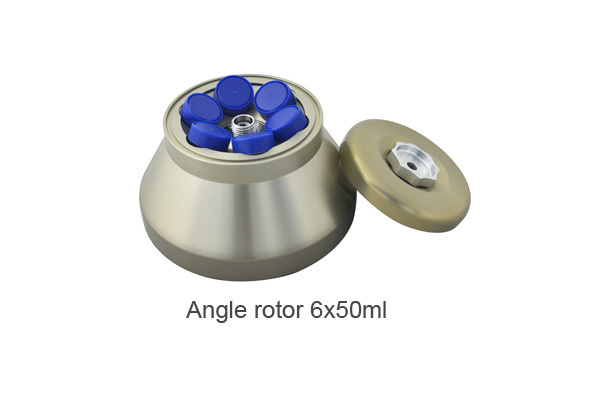

No.4	Angle rotor	13000	17947	6x50ml
No.4	Adaptor	13000	17947	1.5ml/5ml/10ml/15ml/ 20ml/25ml/30ml
No.5	Angle rotor	12000	15292	6x50ml(conical) 50ml round bottom adaptor as gift
No.5	Adaptor	12000	15292	15ml(conical)

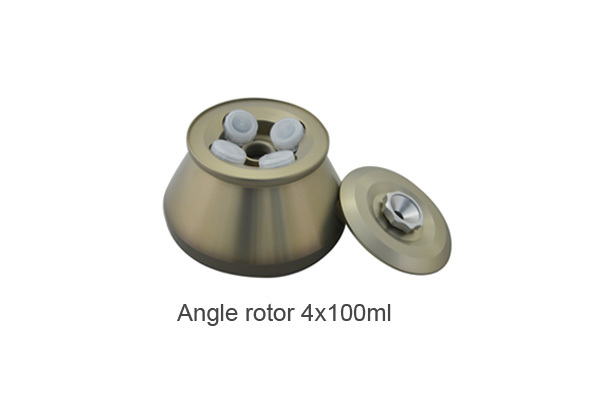

No.6	Angle rotor	10000	10744	4x100ml
No.6	Adaptor	10000	10744	5ml/10ml/15ml (conical/round)/25ml/50ml(conical/round)
No.7	Angle rotor	14000	22140	30x1.5/2.0ml
No.8	Angle rotor	13000	18525	48x1.5/2.0ml
No.8	Adaptor	13000	18525	0.2ml/0.5ml
No.9	Angle rotor	13000	16020	6x8x0.2 PCR strips
No.10	Hematocrit rotor	13000	17369	24 capillaries
No.11	Swing rotor	13000	16816	24x1.5/2.2ml
No.11	Adaptor	13000	16816	0.2ml/0.5ml
No.12	Angle rotor	12000	13200	8x15ml (conical)
No.12	Adaptor	12000	13200	5ml

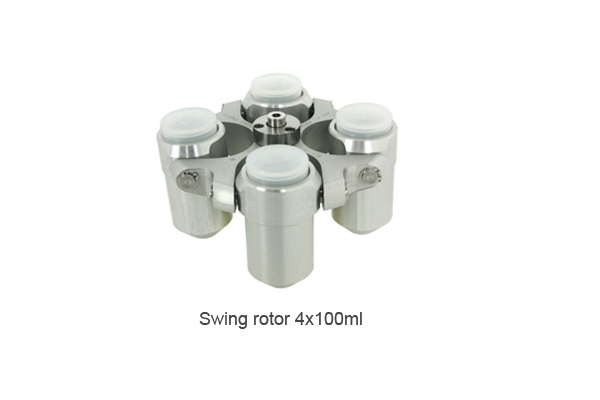

No.13	Swing rotor yoke	5000	3773	4x100ml
	Bucket	5000	3773	4x100ml
	Adaptor	5000	3773	4x1x50ml (conical)
				4x1x50ml (round)
				4x1x15ml (conical)
				4x1x15ml (round)
				4x3x10ml vacuum blood collection tube

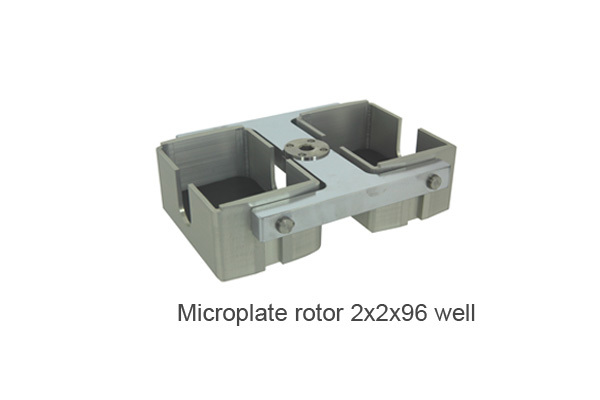

No.14	Swing rotor yoke	4000	2200	2x2x96 well
	Microplate bucket	4000	2200	2x6x96 MTP
				2x2x96 DWP
				2x1x96 filtration kit
No.15	Angle rotor	18500	23797	12x1.5/2.2ml
No.15	Adaptor	18500	23797	0.2ml/0.5ml
