CH12R Benchtop Low Speed Refrigerated Centrifuge(Specially for Blood Collection Vehicle)

Max. speed: 5000 r/min
Max. RCF: 4030xg
Max. capacity: 24x10ml

Other Products

Leave a message

CH12R Benchtop Low Speed Refrigerated Centrifuge (Specially for Blood Collection Vehicle)

CH12R refrigerated centrifuge designed for blood collection vehicle, acoommodate to vacuum blood collection tube, nucleic acid centrifuge tube and so on. It's specially suitable for nucleic aic centrifugation detection. With unique sucker type foot, it can sucked on the table tightly. Even when driving, there is no need to worry about the movement of the centrifuge. The compressor is fully enclosed type and rotary type. CH12R is really a good choice for blood collection vehicle.

Product Features

1. It adopts double-layer structure. And compact footprint(360x450x400mm) saves valuable bench space.

2. With 5 inch HD touch screen control, easy-operate and intuitive. The setting parameters and running parameters at a glance.

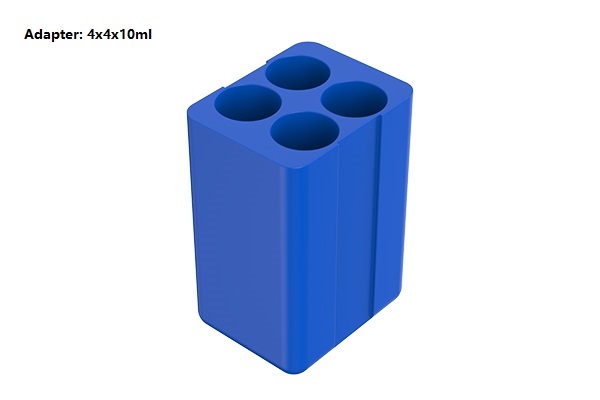

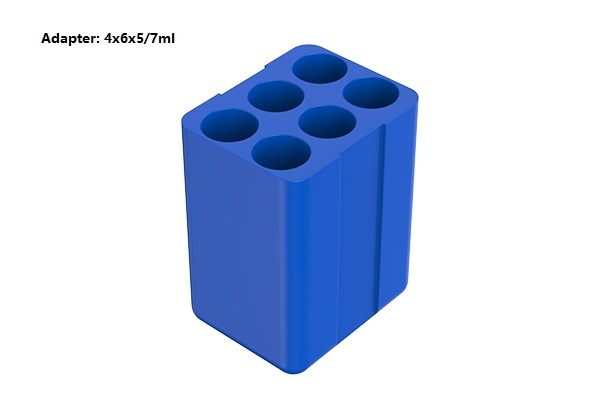

3. Multiple adapters available, accommodate to 2-5ml vacuum blood collection tube, 8-10ml nucleic acid centrifuge tube as well as other 10ml tubes.

4. Multiple protection, include over-speed, over-temperature, lock and so on, to ensure user's safety.

Technical Parameters

Model	CH12R
Max. speed	5000rpm
Max. RCF	4030xg
Max. capacity	24x10ml
Speed accuracy	±30rpm
Time setting range	1min to 99min
Temp. setting range	-20℃~40℃
Temp. control accuracy	±2℃
Compressor	High performance hermetic rotary compressor (R134a)
Noise	≤60dB(A)
Power supply	AC220±22V 50/60Hz
Power consumption	450W
Dimension (WxDxH)	360x450x400mm
Net weight	30kg

Rotor Option

Rotor No.	Name	Max. speed	Max. RCF	Max. Capacity

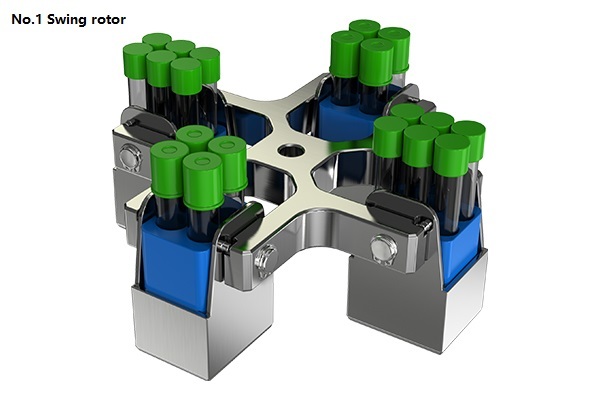

No.1	Swing rotor	4500rpm	3080xg	4x6x5/7mL
No.1	Swing rotor	4500rpm	3080xg	4x4x10mL

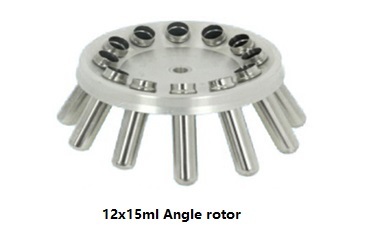

No.2	Angle rotor	5000rpm	3555xg	12x15mL
No.3	Angle rotor	5000rpm	4030xg	24x10mL
