GL-10MD Large Capacity High Speed Refrigerated Centrifuge
1/1

GL-10MD Large Capacity High Speed Refrigerated Centrifuge

Max. speed: 10000rpm
Max. RCF: 18300xg
Max. capacity: 6x1000ml
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Product Description
转速:
4000转到10000转/分钟
容量:
1000ml ,500ml ,250ml
控温方式:
冷冻

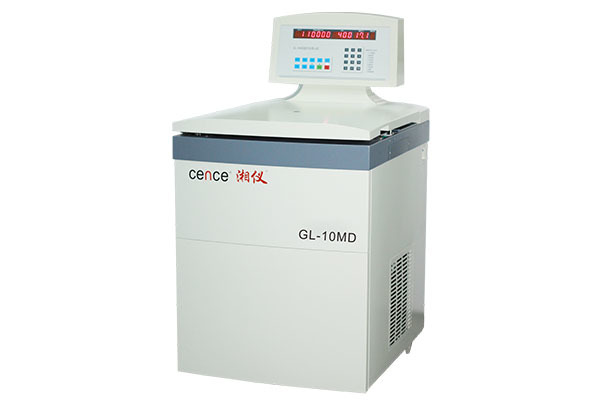

GL-10MD Large Capacity Refrigerated Centrifuge

GL-10MD is specially designed for users who require both high capacity and high speed.

It is widely used in bioengineering, genetic engineering, biopharmacy and other fields.





Product Features

1. Max. speed up to 10000r/min, maxium RCF up to 18300xg

2. Many adapters are available for 4x1000ml swing rotor.

3. Microprocessor control, AC brush-less motor, without carbon dust pollution, low noise, less vibration and service life is long.

4. Touch panel, LED display,programmable. It can store many routine programs.

5. Providing multiple protection against imbalance, over-temperature and over-speed, and door interlock for safe operation.

6. The imported refrigerant is environmental and efficient.

7. Acc and Dec time can be set freely by users, and RCF value will be calculated automatically.
8. The rotor and bucket adopt 7075-T6 aviation grade aluminum alloy, which is hard anodized and corrosion-resistant. Each process from raw materials, processing to finished products is strictly controlled; the material certificate,flaw detection report, tensile test report, chemical composition inspection report have original records.





Technical Parameters

Model

GL-10MD

Max. speed

10000rpm

Max. RCF

18300xg

Max. capacity

6x1000ml

Speed accuracy

±10rpm

Time setting range

1min to 23h59min

Temp. setting range

-20 to 40(1℃ increment)

Temp. accuracy

±1℃

Compressor

environment-friendly refrigerant (R404a)

Noise

≤65dB(A)

Power supply

AC220±22V 50/60Hz 30A

Power consumption

5.5kW

Dimension (WxDxH)

710x820x1200mm

Package size (WxDxH)

920x1040x1520mm

Net weight

310kg





Rotor Options

Rotor No.

Rotor type

Max. speed (rpm)

Max. RCF (xg)

Capacity

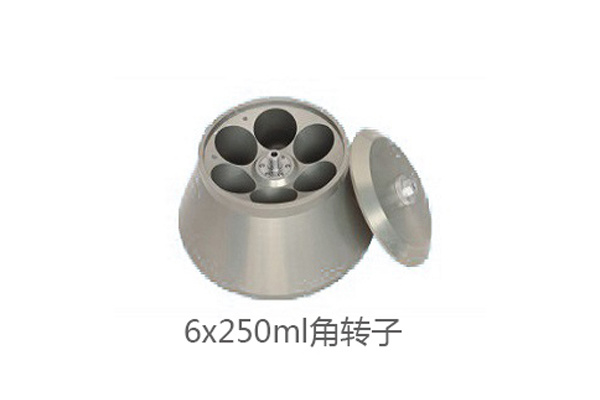

No. 1




Angle rotor

10000

18300

6x250ml



Adaptor




10000




18300


6x100ml
6x50ml (round/falcon)
30x15ml (falcon)
30x10ml
54x1.5ml

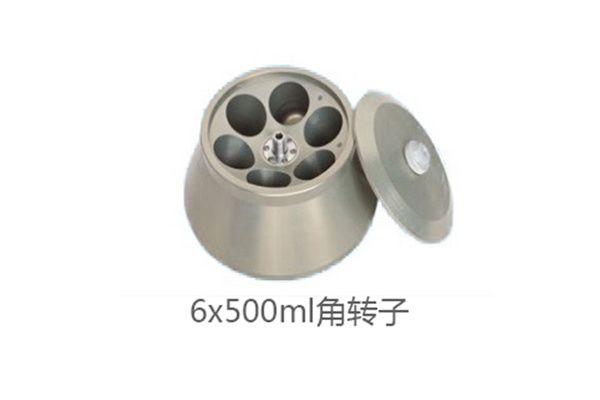

No.2

Angle rotor

8000

11620

6x500ml

Adaptor

8000

11620

6x250ml

6x100ml

6x2x50ml(falcon)

6x2x50ml (round)

6x3x30ml

6x7x15ml(falcon)

6x7x10ml

6x10x5ml

6x13x1.5ml

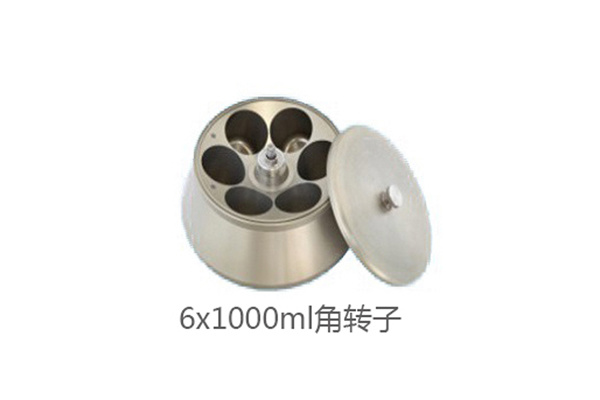

No.3

Angle rotor

7000

11500

6x1000ml

Adaptor

7000

11500

6x500ml

6x250ml

6x4x50ml (falcon)

6x4x50ml (round)

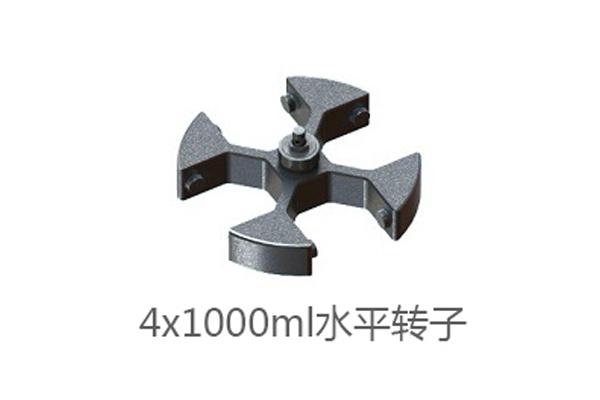

No.4





Swing rotor

4000

4050

4x1000ml (round bucket)

Adaptor

4000

4050

4x1x500ml (round/falcon)

4x1x300ml

4x1x250ml (falcon)

4x1x200ml (blood bag)

4x3x100ml

4x5x50ml (round/falcon)

4x14x15ml (round/falcon)

4x37x7ml

4x24x5ml evacuated tube

4x28x1.5ml

Swing rotor 4000 4050 4x1000ml (retangular bucket)
Adaptor 4000 4050 4x1x1000ml (blood bag)
Microplate rotor 4000 4050 4x1x96 deep-well plate   total height≤72mm
4x2x96 microplate
